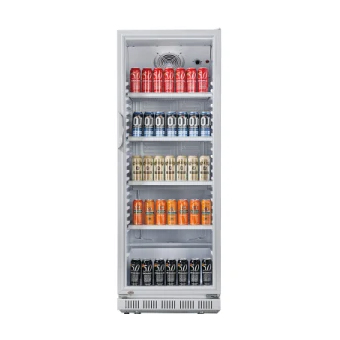

Small Commercial Fridge for Soft Drinks and Juice 230L
Model: NW-LG230XP
- Model: NW-LG230XP
- Product Type: cooler
- Door Type: glass door
- Height: taller than 1.5m/4.9ft
Door Style: 1 Glass Swing Door
Temp. Range: 0~10 ℃
Internal Capacity: 230L
Net Weight: kg
Package Weight: kg
Packed Dimension: 585*665*1501mm
Unit Dimension: 530*635*1442mm
Technical Data
Product Details
This type of Upright Single Glass Door Drinks Display Fridge is for beverage or food cooling storage and display, the temperature is controlled by a fan cooling system. Simple and clean interior space with LED lighting. The door frame and handles are made of plastic material, and aluminum is optional for the enhanced requirement. The interior shelves are adjustable to arrange the space for placement. The door panel is made of tempered glass that is durable enough for anti-collision, and it can be swung to open and close, auto-closing type is optional. The temperature of this commercial glass doo fridge has a digital screen for working status display, and it’s controlled by simple physical buttons but has high-performance for long-lasting use, different sizes are available for your choice and it is excellent for grocery stores or snack bars where space is small or medium.
Details
The front door of this upright display fridge is made of super clear dual-layer tempered glass that features anti-fogging, that provides a crystally-clear view of the interior, so the store drinks and foods can be displayed to the customers at their best.
This single door display fridge holds a heating device for removing condensation from the glass door while there is rather high humidity in the ambient environment. There is a spring switch at the side of the door, the interior fan motor will be turned off when the door is opened and turned on when the door is closed.
This single door drinks fridge operates with a temperature range between 0°C to 10°C, it includes a high-performance compressor that uses environmental-friendly R134a/R600a refrigerant, greatly keeps the interior temperature precise and constant, and help improves refrigeration efficiency and reduces energy consumption.
The front door includes 2 layers of LOW-E tempered glass, and there are gaskets on the edge of the door. The polyurethane foam layer in the cabinet wall can tightly keep the cold air locked inside. All these great features help this single display fridge improve the performance of thermal insulation.
The interior LED lighting of this single drinks fridge offers high brightness to help illuminate the items in the cabinet, all drinks and foods that you want to sell most can be crystally showed, with an attractive display, your items to catch the eyes of your customers.
In addition to the attraction of the stored items themselves, the top of this commercial upright display fridge has a piece of lighted advert panel for the store to put customizable graphics and logos on it, that can help be easily noticed and increase the visibility of your equipment no matter where you position it.
The control panel of this single door display fridge is positioned under the glass front door, it’s easy to turn on/off the power and switch the temperature levels, the temperature can be precisely set where you want it, and display on a digital screen.
The glass front door can not only allow customers to see the stored items at an attraction, and also can close automatically, as this single door drinks fridge comes with a self-closing device, so you don’t need to worry that it’s accidentally forgotten to close.
This single display fridge was well constructed with durability, it includes stainless steel exterior walls that come with rust resistance and durability, and the interior walls are made of aluminum that features lightweight. This unit is suitable for heavy-duty commercial applications.
The interior storage sections of this single display fridge are separated by several heavy-duty shelves, which are adjustable to freely change the storage space of each deck. The shelves are made of durable metal wire with 2-epoxy coating finish, which is easy to clean and convenient to replace.
Applications
| MODEL | LG-230X | LG-310X | LG-360X | |
| System | Gross (Liters) | 230 | 310 | 360 |
| Cooling system | Direct cooling | Direct cooling | Direct cooling | |
| Auto-Defrost | NO | NO | NO | |
| Control system | Mechanical | Mechanical | Mechanical | |
| Dimensions | External Dimension WxDxH (mm) | 530x635x1721 | 620x635x1841 | 620x635x2011 |
| Packing Dimensions WxDxH(mm) | 585x665x1771 | 685x665x1891 | 685x665x2061 | |
| Weight net /Weight gross (kg) | 56/62 | 68/76 | 75/85 | |
| 20'GP/ 40' GP/ 40' HQ Container | 98 | 73 | 71 | |
| Doors | Glass Door type | Hinge door | Hinge door | Hinge door |
| Door frame, door handle material | PVC | PVC | PVC | |
| Glass type, (tempered)* | Normal | Normal | Normal | |
| Door Auto Closing | For option | For option | For option | |
| LOCK | YES | YES | YES | |
| Equipment | Adjustable shelves (pcs) | 4 | 4 | 4 |
| Adjustable Rear Wheels (pcs) | 2 | 2 | 2 | |
| Internal light vert./hor.* | Veritical*1 LED | Veritical*1 LED | Veritical*1 LED | |
| Specification | Cabinet Tem. 0C | 0~10 0C | 0~10 0C | 0~10 0C |
| Temperature digital screen | No | No | No | |
| Refrigerant (CFC-free) gr | R134a/ R600a | R134a/ R600a | R134a/ R600a |
| 系统 | 模型 | LG-230XF | LG-310XF | LG-360XF |
| 毛重（升） | 230 | 310 | 360 | |
| 冷却系统 | 数字的 | 数字的 | 数字的 | |
| 自动除霜 | 是的 | 是的 | 是的 | |
| 控制系统 | 风扇冷却 | 风扇冷却 | 风扇冷却 | |
| 方面 | 外形尺寸宽x深x高（毫米） | 530*635*1721 | 620*635*1841 | 620*635*2011 |
| 包装尺寸 宽x深x高(毫米) | 585*665*1771 | 685*665*1891 | 685*665*2061 | |
| 净重/毛重 (kg) | 56/62 | 68/72 | 75/85 | |
| 40' GP/ 40' HQ 集装箱 | 98 | 73 | 71 | |
| 门 | 玻璃门类型 | ABS | ABS | ABS |
| 门框、门把手材质 | PVC | PVC | PVC | |
| 玻璃类型，（钢化）* | 淬火 | 淬火 | 淬火 | |
| 自动关门 | 可供选择 | 可供选择 | 可供选择 | |
| 锁 | 是的 | 是的 | 是的 | |
| 设备 | 可调式搁板（个） | 4 | 4 | 4 |
| 可调后轮（个） | 2 | 2 | 2 | |
| 内部灯垂直/水平* | 垂直*1 LED | 垂直*1 LED | 垂直*1 LED | |
| 规格 | 内阁温度。0℃ | 0~10℃ | 0~10℃ | 0~10℃ |
| 温度数显屏 | 是的 | 是的 | 是的 | |
| 制冷剂（不含 CFC）gr | R134a/R600a | R134a/R600a | R134a/R600a |
| MODEL | LG-230XP | LG-310XP | LG-360XP | |
| System | Gross (Liters) | 230 | 310 | 360 |
| Cooling system | Direct cooling | Direct cooling | Direct cooling | |
| Auto-Defrost | NO | NO | NO | |
| Control system | Mechanical | Mechanical | Mechanical | |
| Dimensions | External Dimension WxDxH (mm) | 530*635*1442 | 620*635*1562 | 620*635*1732 |
| Packing Dimensions WxDxH(mm) | 585*665*1501 | 685*665*1621 | 685*665*1791 | |
| Weight net /Weight gross (kg) | 53/59 | 65/71 | 72/79 | |
| 20'GP/ 40' GP/ 40' HQ Container | 102 | 75 | 73 | |
| Doors | Glass Door type | Hinge door | Hinge door | Hinge door |
| Door frame, door handle material | PVC | PVC | PVC | |
| Glass type, (tempered)* | Normal | Normal | Normal | |
| Door Auto Closing | For option | For option | For option | |
| LOCK | YES | YES | YES | |
| Equipment | Adjustable shelves (pcs) | 4 | 4 | 4 |
| Adjustable Rear Wheels (pcs) | 2 | 2 | 2 | |
| Internal light vert./hor.* | Veritical*1 LED | Veritical*1 LED | Veritical*1 LED | |
| Specification | Cabinet Tem. 0C | 0~10 0C | 0~10 0C | 0~10 0C |
| Temperature digital screen | No | No | No | |
| Refrigerant (CFC-free) gr | R134a/ R600a | R134a/ R600a | R134a/ R600a |
-
